Project Description
HVAC Copper Filter Drier For Refrigeration Parts
Quick Details
Type:
Refrigerator Parts, Filter dryer
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Neutral labels or OEM
Model Number:
TPFD001
Condition:
New
Material:
Copper Welding Filter Dryer
Color:
Copper
Application:
Refrigeration Parts
Packaging & Delivery
Packaging Details
In common plastic bag or vacuum packing,then packed into carton or drum.
Port
Ningbo
Lead Time :
after 15 days,depending on your order quantity
Refrigeration welding copper filter drier
Specifications:
elding filter drier for refrigerator,freezer, air conditioning and with different size and competitive price
1.For refrigerator,freezer,air conditioning,compressor units
2.Words can be printed on the boby of the goods
3.Labels also available for your choise
4.Both ends with plastic caps, big one or little one (white, yellow, red, blue,
green, different colors available)
5.Molecular sieves:XH-9
5GR,7GR,10GR,12GR,15GR,20GR,25GR,30GR,40GR,50GR
6.Stop points available for both inlet and outlet or any one
7.Suitable for R134a,R12, universal one
8.Packing: in common plastic bag or vacuum aluminium foil, then packed into carton or drum
9.We can produce according to drawings or sample
10.You can contact us for more detailed information.

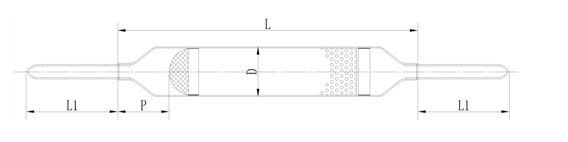

| Model | Zeolite weight | External Diameter[D] | Length[L] | Length[L1] | Screen Depth[P] | ||||||||||||||||||||||
| Tolerances | ±5% | ±0.10mm | ±3.00mm | mm | ±2.00mm | ||||||||||||||||||||||
| TP 02W- 001 | 10.00 | Φ16.00 | 115.00 | 40.00 | 45.00 | 50.00 | 55.00 | 24.00 | |||||||||||||||||||
| TP 02W- 002 | 10.00 | Φ19.00 | 98.00 | 40.00 | 45.00 | 50.00 | 55.00 | 24.00 | |||||||||||||||||||
| TP 02W- 003 | 10.00 | Φ19.00 | 105.00 | 40.00 | 45.00 | 50.00 | 55.00 | 24.00 | |||||||||||||||||||
| TP 02W- 004 | 12.00 | Φ19.00 | 109.00 | 40.00 | 45.00 | 50.00 | 55.00 | 24.00 | |||||||||||||||||||
| TP 02W- 005 | 15.00 | Φ19.00 | 115.00 | 40.00 | 45.00 | 50.00 | 55.00 | 24.00 | |||||||||||||||||||
| TP 02W- 006 | 15.00 | Φ19.00 | 120.00 | 40.00 | 45.00 | 50.00 | 55.00 | 24.00 | |||||||||||||||||||
| TP 02W- 007 | 20.00 | Φ19.00 | 141.00 | 40.00 | 45.00 | 50.00 | 55.00 | 24.00 | |||||||||||||||||||
| TP 02W- 008 | 20.00 | Φ24.00 | 120.00 | 40.00 | 45.00 | 50.00 | 55.00 | 26.00 | |||||||||||||||||||
| TP 02W- 009 | 25.00 | Φ24.00 | 125.00 | 40.00 | 45.00 | 50.00 | 55.00 | 26.00 | |||||||||||||||||||
| TP 02W- 010 | 30.00 | Φ24.00 | 140.00 | 40.00 | 45.00 | 50.00 | 55.00 | 26.00 | |||||||||||||||||||
| TP 02W- 011 | 35.00 | Φ24.00 | 155.00 | 40.00 | 45.00 | 50.00 | 55.00 | 26.00 | |||||||||||||||||||
| TP 02W- 012 | 40.00 | Φ24.00 | 170.00 | 40.00 | 45.00 | 50.00 | 55.00 | 28.00 | |||||||||||||||||||
| TP 02W- 013 | 50.00 | Φ29.00 | 160.00 | 40.00 | 45.00 | 50.00 | 55.00 | 30.00 | |||||||||||||||||||
