wholesales CBB65 dual motor capacitor

Product Description

Air conditioner capacitor , oil capacitor, motor capacitor, IGBT capacitor, CBB65 capacitor,motor run capacitor, aluminum case capacitor ,anti-explosion capacitor.

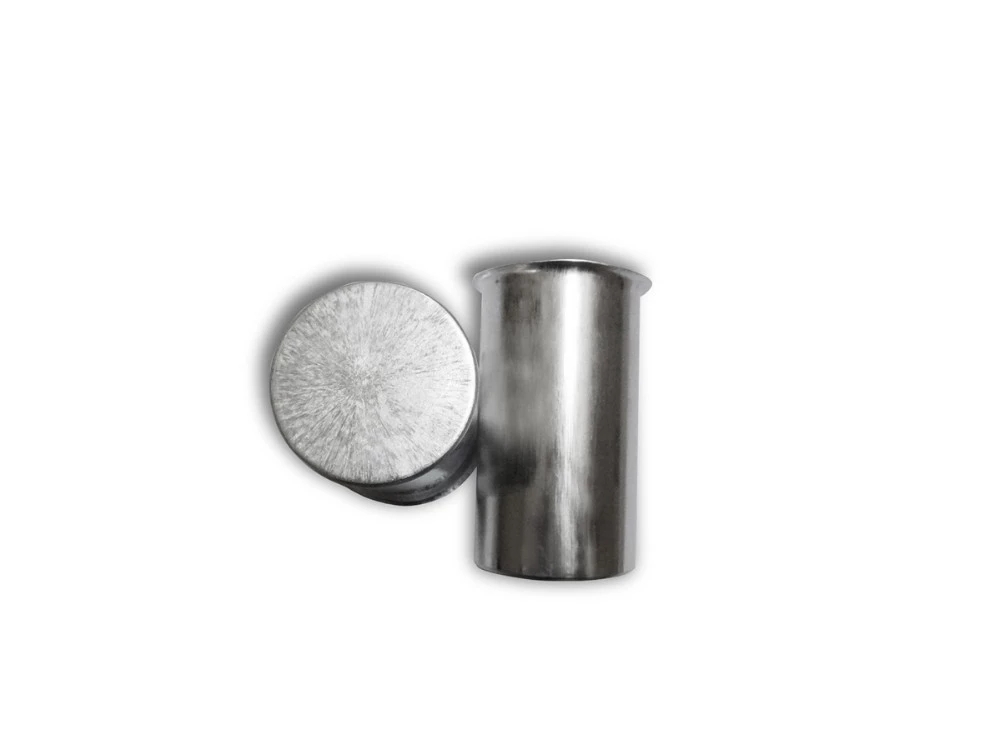

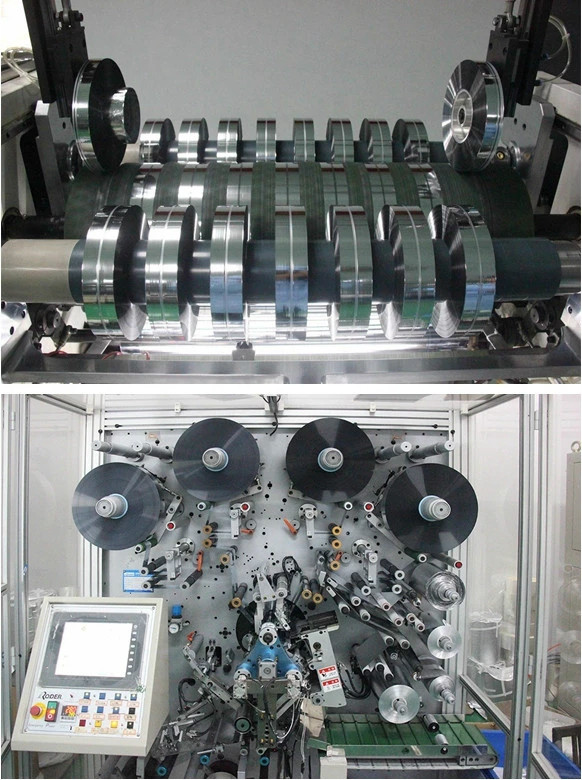

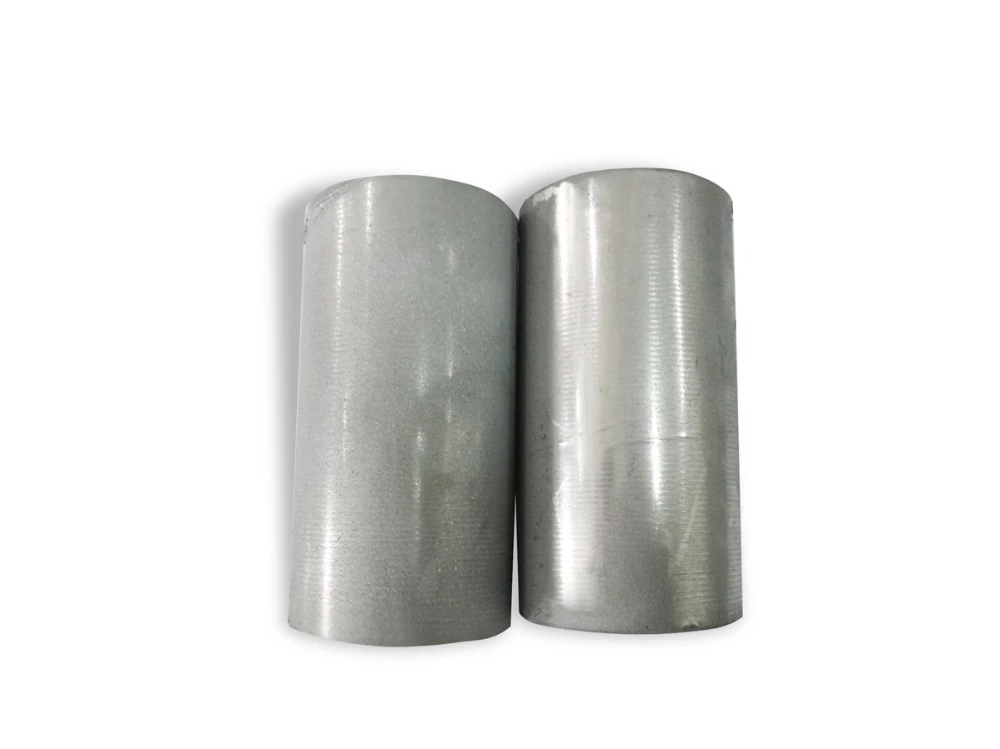

The capacitor adopts heavy-edge zinc-aluminum alloy metallized polypropylene film as electrodes and dielectric. After winding in high-velocity winder, the film winding will be put into aluminum case in which there is high purity castor oil to keep the winding in vacuum and can withstand high temperature. These make the capacitor’s performance better and provide a long service time. Meanwhile, the capacitor with the second generation mechanical design, has a function of explosion proof,this guarantees and improves its performance.

Basic Information
Product Name	CBB65 AC Motor Capacitor(aluminum case, anti-explosion)
Material	Metal
Color	Silver/Blue/Yellow(Yellow and blue is a protective film on the outside）
Terminal	Pin or lead
Used	Refrigerator、Air Conditioner、Washing Machine、AC single-phase motors etc.
Specifications
Reference standards	GB/T 3667.1(IEC60252-1)
Climatic category	40/70/21,40/85/21
Class of operation	Class B(10000h) Class C(3000h)
Class of safety protection	P2/P1
Voltage range	200～500VAC
Capacitance range	2～100μF
Capacitance tolerance	±5%
Dissipation factor	2×10-4（100Hz，20℃）
Test voltage terminalto terminal	2 Un for 2 seconds
Test voltage terminalto case	(2Un+1000)VACor2000VAC-50Hz for 60 seconds
RC numerical	≥3000MΩ.μF(100Hz，20℃，1min)
